Liquid filling machine validation parameters are one of the most critical activities in pharmaceutical manufacturing because it directly determines the correct dose, sterility (for injectables), and consistency of every unit released to patients. Inadequate validation of liquid filling machine parameters can lead to under‑fills, over‑fills, microbial or particulate contamination, batch rejection, product recalls, and ultimately patient harm.
Global regulators such as USFDA, EMA, WHO and PIC/S expect firms to demonstrate through qualification and process validation that filling equipment operates in a state of control across its lifecycle. Proper DQ, IQ, OQ, and PQ of liquid filling lines—together with robust cleaning validation, data integrity and ongoing monitoring—forms the backbone of a compliant and inspection‑ready liquid manufacturing facility.
What is Liquid Filling Machine Validation?
Liquid filling machine validation is the documented process of proving that a filling line—singly or as part of an integrated liquid manufacturing system—consistently fills containers within predefined specifications and maintains required quality attributes (e.g., sterility, container closure integrity) throughout routine production. The objective is to show that the equipment, when operated under defined conditions, repeatedly delivers conforming product over time.
WHO GMP validation guidelines require that critical manufacturing processes be validated and that equipment be qualified through a structured lifecycle including design, installation, operation, and performance checks. USFDA’s CGMP regulations and guidance on aseptic processing similarly mandate process validation and emphasize scientific evidence that processes are in a state of control. EU GMP Annex 1, revised in 2023, reinforces this through the concept of a Contamination Control Strategy (CCS) and detailed expectations on aseptic design, environmental control, and validation of sterile processes. PIC/S guidance aligns with these expectations and promotes harmonized approaches to equipment qualification and process validation.
Qualification vs validation
- Equipment qualification (DQ–IQ–OQ–PQ) focuses on the equipment and its associated systems, verifying design, correct installation, operational capability, and performance under defined conditions.
- Process validation focuses on the overall manufacturing process (including equipment, utilities, methods, and operators) to demonstrate that it consistently produces product meeting its predefined quality attributes over time.
For liquid filling machines, these two concepts overlap: equipment qualification feeds into process validation, and regulators expect both to be integrated into the site’s validation master plan (VMP).
Types of Liquid Filling Machines Used in Pharma
Understanding the machine design and dosing principle is essential because validation parameters and worst‑case conditions depend heavily on the filling technology.
- Volumetric and piston fillers – Use pistons and cylinders to deliver a defined volume, common for syrups, suspensions and some non‑sterile oral liquids where moderate to high viscosities are handled.
- Peristaltic pump fillers – Use flexible tubing compressed by rollers, widely used in sterile injectable filling lines due to low hold‑up volume, easy product changeover, and reduced cross‑contamination risk.
- Gravity and overflow fillers – Rely on gravity/level filling, suitable mainly for low‑viscosity non‑sterile products such as simple oral solutions, mouthwashes, and some topical liquids.
- Rotary filling machines – High‑speed rotary indexing systems for vials or bottles, often integrated with stoppering and capping stations for injectables and non‑sterile products.
- Monoblock systems – Combine bottle in‑feed, filling, stoppering/capping, and sometimes labelling in a single compact unit, widely used for syrups and small‑volume liquids in contract manufacturing environments.
- Sterile aseptic filling systems (vials, ampoules, BFS, PFS) – Typically located in Grade A (ISO 5) under Grade B background per Annex 1, often with isolators or RABS, and require stringent validation of aseptic conditions, media fills, container closure integrity, and decontamination cycles.
Each technology has different critical validation parameters—e.g., peristaltic systems require periodic tubing replacement and verification of pump calibration, while piston fillers require checks for piston wear and seal integrity.

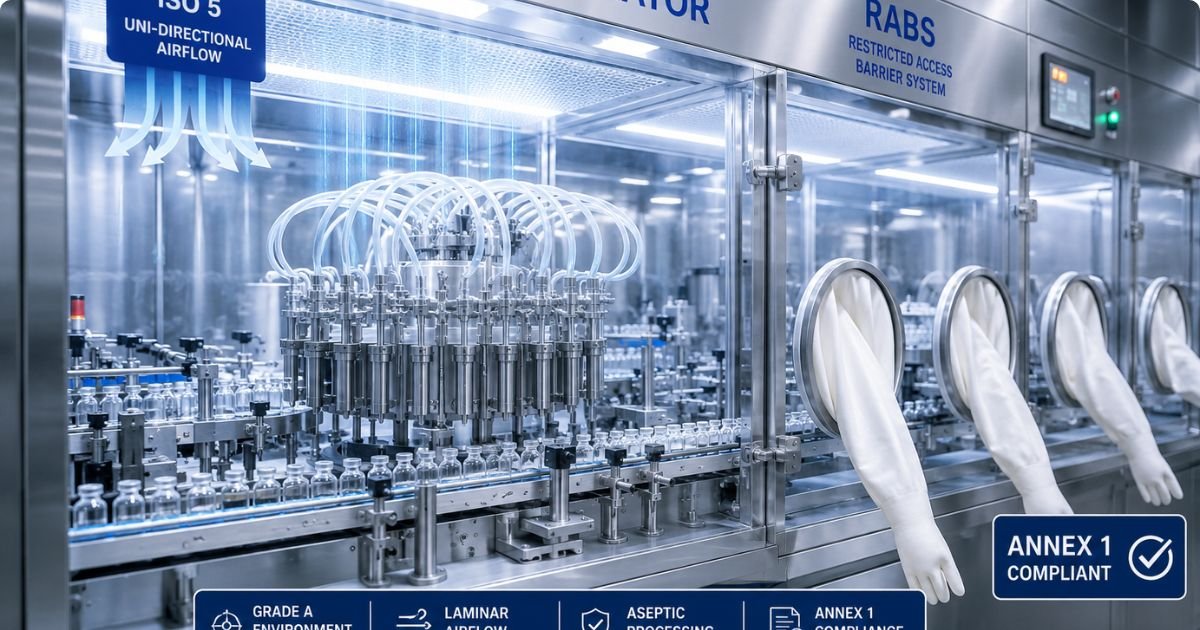

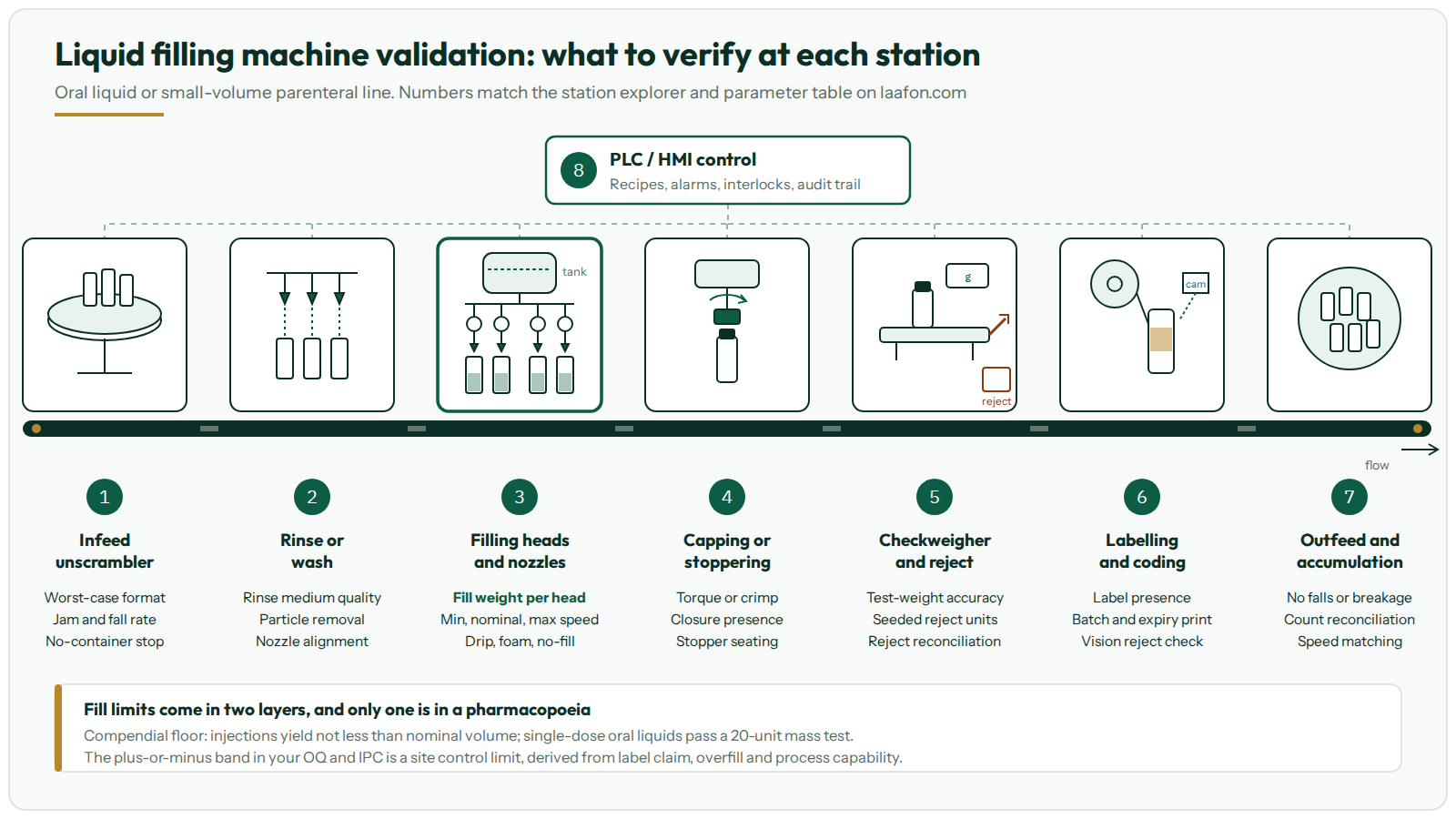

Critical Validation Parameters for Liquid Filling Machines
The table below provides typical liquid filling machine validation parameters with example acceptance criteria, test methods, frequency, and regulatory significance; specific numerical limits must always be aligned with product registration, pharmacopeial requirements, and risk assessment.
Technical Parameter Table
Design Qualification (DQ)
Design Qualification ensures that the proposed liquid filling machine, as offered by the vendor, meets the site’s User Requirement Specification (URS), applicable GMP, and regulatory expectations before procurement and installation.
Key DQ Elements
- URS verification – URS should define product range (sterile/non‑sterile, viscosity), volumes, formats, required fill accuracy, speed, cleaning approach (CIP/SIP), automation level, and data integrity expectations.
- Vendor qualification – Evaluation of vendor’s GMP experience, prior installations in pharma, service support, and quality management system, often via audits.
- GMP design considerations – Materials of construction (SS 316L product contact, FDA‑compliant elastomers), hygienic design, minimal dead legs, drainability, and accessibility for cleaning and maintenance.
- Cleanability and sterilizability – Compatibility with validated CIP/SIP cycles or manual cleaning regimes; connections to WFI, clean steam, and compressed gases for sterile lines.
- Automation and 21 CFR Part 11 compliance – PLC/HMI design with role‑based access, electronic signatures and audit trails where electronic batch records are planned.
- Safety systems – Machine guards, interlocks, emergency stops, overload protection, and ergonomics for operators.
- FAT/SAT planning – Definition of Factory Acceptance Test (FAT) and Site Acceptance Test (SAT) contents to verify major URS points prior to full qualification.
Example DQ Checklist (Extract)
DQ is formally closed only after all open points are resolved or risk‑assessed, and the DQ report is approved by Engineering, QA, Validation and (where applicable) the user department.
Installation Qualification (IQ)
Installation Qualification confirms that the liquid filling machine and its ancillary systems are installed according to approved design documents, vendor recommendations, and GMP requirements.
IQ Protocol Content
- Equipment identification – Model, serial number, tag numbers, and location documented and matched with purchase documents and URS.
- Mechanical installation – Verification of levelling, anchoring, vibration control, correct orientation, and mechanical completeness.
- Utilities verification – Electrical supply, compressed air, nitrogen, vacuum, WFI, clean steam, chilled water and HVAC connections verified against specifications.
- Electrical verification – Wiring, earthing, breaker sizing, panel labelling, and safety devices checked against electrical drawings.
- Instrument calibration status – All critical instruments installed with valid calibration certificates and identification tags.
- P&ID and drawing verification – As‑built P&ID, GA and wiring diagrams updated and reconciled with actual installation.
- Material verification – Verification of product contact materials via MTCs/MTRs where critical (e.g., for sterile lines).
- Spare parts and change parts – Availability of recommended spares and format parts as per agreements.
- SOP availability – Draft or final SOPs for operation, cleaning, maintenance and safety available before OQ.
- Documentation review – Vendor manuals, certificates, FAT/SAT reports, software documentation, and IQ records compiled and approved.
Sample IQ Checklist Items
- Power supply (voltage, frequency, phase) matches machine design and is within tolerance.
- Compressed air quality (pressure, dryness, oil) complies with site standards for product‑contact pneumatics.
- WFI and clean steam connection points identified and labelled; flow direction and slope comply with hygienic design.
- All guards and safety interlocks installed and functional (e.g., doors, covers, light curtains).
Common IQ Deviations
Typical IQ observations include missing or outdated as‑built drawings, incorrect utility labelling, uncalibrated instruments at installation, and undocumented minor design modifications during erection. Regulators expect these to be formally recorded as deviations, risk‑assessed, corrected and closed before the system is released to OQ.
Operational Qualification (OQ)
Operational Qualification demonstrates that the filling machine operates as intended throughout its specified operating ranges and that all control, alarm, and safety functions work correctly.
Core OQ Activities
- Definition of operating ranges – Minimum and maximum speed, minimum and maximum fill volumes, viscosity range, container size range, and environmental conditions.
- Speed challenge tests – Running the line at low, nominal and maximum qualified speeds while maintaining fill accuracy, reject effectiveness and acceptable stoppage rates.
- Fill accuracy and repeatability tests – Multiple sets of gravimetric or volumetric checks across ranges, evaluated statistically (mean, SD, CV, process capability indices where appropriate).
- Alarm testing – Simulation of utility failures (air, vacuum, WFI), door/guard open conditions, EM excursions and critical parameter deviations, verifying proper alarms and machine responses.
- Interlock testing – Challenges to safety interlocks (guards, access doors, emergency stops) to ensure machine stops safely and cannot restart until conditions are safe.
- Dry‑run testing – Machine operation with empty containers (or water) to verify mechanical stability, container transfer, star‑wheel timing, and absence of jams before product runs.
- CIP/SIP operational testing – Running cleaning and sterilization cycles with thermocouples and flow indicators to verify contact times, temperatures and coverage.
- Sensor verification – Functional checks of level sensors, photo‑sensors, proximity switches, encoders, load cells and flow meters.
- PLC/HMI and data integrity tests – Verification of recipes, set‑point changes, audit trail, user access controls, data storage and backup as part of CSV.
OQ Protocol Examples and Acceptance Criteria
- Fill accuracy at minimum and maximum speed must remain within predefined tolerance (e.g., ±1–2% or as per dossier), with no significant trend in bias.
- For sterile lines, all pre‑programmed SIP cycles must reach and maintain the validated sterilization temperature and exposure time in all mapped locations.
- All critical alarms must be acknowledged, recorded with time/date/user in the audit trail, and trigger appropriate machine behaviour (e.g., stop, inhibit start, safe state).
Data Recording Formats
OQ data sheets typically capture:
- Equipment ID, test description, test conditions and ranges.
- Raw data (e.g., individual fills) and calculated statistics.
- Pass/fail evaluation and references to deviations where applicable.
These records form part of the validation evidence and will be scrutinized during inspections, especially in the context of data integrity and ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, plus Complete, Consistent, Enduring and Available).
Performance Qualification (PQ)
Performance Qualification demonstrates that the qualified filling line can reproducibly fill commercial batches over time under routine operating conditions, including typical operators, shifts and environmental variability.
PQ Design
- Consecutive commercial batch validation – Typically at least three consecutive commercial‑scale batches per product or product family, manufactured at routine settings, are used to demonstrate reproducibility.
- Commercial batch simulation for new lines – In some cases, placebo or media batches may be used initially, but PQ must ultimately rely on real product under normal conditions.
- Long‑duration runs – For high‑speed syrup or injectable lines, PQ should include extended runs to capture equipment behaviour (drift, wear, thermal effects) over realistic production windows.
- Operator variability – PQ design should include different trained operators and shifts to demonstrate that the process is robust to normal human variations.
- Environmental monitoring integration – For sterile lines, PQ batches are accompanied by full non‑viable and viable monitoring, demonstrating that environmental conditions remain within limits under dynamic operations.
Statistical Evaluation
Fill volume/weight data collected during PQ are analyzed for:
- Mean vs target volume and percentage deviation.
- Standard deviation, coefficient of variation (CV), and where relevant, process capability indices such as Cp and Cpk.
- Trending across the batch (start/middle/end) and across batches to detect drift or systematic shifts.
Acceptable fill weight variation is defined by product and regulatory requirements; for many critical liquid dosage forms, practice and compendial references support stringent accuracy targets (e.g., around ±1% tolerance for certain small‑volume fills), but firms must justify limits scientifically and align them with pharmacopeial and dossier commitments.
Real‑World PQ Scenarios
- Sterile injectable line – PQ includes three commercial batches of vials filled using peristaltic pumps in a Grade A/RABS environment, with media fills executed separately to qualify aseptic processing per Annex 1 and FDA aseptic guidance.
- Syrup filling machine validation – PQ covers three batches of high‑viscosity oral syrup on a monoblock filler, validating fill accuracy at different headspace conditions, capping torque, and label reconciliation at commercial line speeds.
- Oral liquid manufacturing validation – For a multi‑product syrup line, a matrix or bracketing approach may be used, selecting worst‑case viscosity and fill sizes to qualify a family of products in a risk‑based manner, as allowed under WHO’s validation guidance.
Validation Documentation Requirements
A robust documentation system is essential to demonstrate control to inspectors and auditors.
Key documents include:
- Validation Master Plan (VMP) – Describes the overall validation strategy, including equipment qualification, process validation, cleaning validation, computerized systems, and responsibilities.
- Validation protocols (DQ/IQ/OQ/PQ) – Approved protocols defining scope, responsibilities, tests, sampling plans, and acceptance criteria.
- Raw data sheets and logbooks – Original records, electronic or paper, for all qualification and validation activities, maintained per ALCOA+ principles.
- Traceability matrix (RTM) – Mapping of URS requirements to DQ, FAT/SAT, IQ, OQ and PQ tests to ensure full coverage.
- Deviation reports – Documentation of all deviations during validation, with root‑cause analysis, impact assessment, and interim controls.
- CAPA records – Corrective and preventive actions arising from validation findings, linked back to deviations and change controls.
- Final validation report – Critical evaluation summarizing results across DQ/IQ/OQ/PQ, deviations, CAPA, and conclusion that the system is fit for intended use.
- Change control and revalidation triggers – Procedures for assessing the impact of changes (e.g., product, volume, speed, software, utilities) and defining the extent of requalification and revalidation required.
Regulatory Expectations and GMP Compliance
Global guidelines converge on the expectation that liquid filling operations must be designed, qualified, validated and monitored within a robust pharmaceutical quality system.
- USFDA (21 CFR Parts 210/211, aseptic guidance) – Requires process validation, adequate equipment design, calibration and maintenance, and specific aseptic processing practices, including environmental monitoring and media fills.
- MHRA & other EU authorities – Enforce EU GMP, including Annex 1 for sterile products and broader expectations for quality risk management and validation.
- WHO GMP and validation guideline (TRS 1019 Annex 3) – Provide overarching principles for equipment qualification, cleaning validation, computerized systems, and process validation for sterile and non‑sterile processes.
- PIC/S – Harmonized interpretations of GMP and validation, including guidance on qualification and validation of facilities, utilities and equipment.
Data integrity is a cross‑cutting theme: regulators expect secure, reliable electronic and paper records that meet Part 11/Annex 11 and ALCOA+ expectations, including audit trails, access controls, and validated computerized systems. EU GMP Annex 1 further emphasizes a Contamination Control Strategy (CCS) integrating facility design, equipment, cleaning, environmental monitoring and personnel into a coherent sterility assurance concept.
Common Validation Failures and Industry Mistakes
Inspection reports and industry experience highlight recurring issues in liquid filling machine validation.
Typical problems include:
- Improper sampling plans – Too few samples, poor stratification across start/middle/end of batch, or not testing at worst‑case speeds and volumes, leading to over‑optimistic conclusions about fill accuracy.
- Inadequate challenge testing – Limited or absent alarm, interlock, reject, and worst‑case viscosity challenges, resulting in unproven robustness.
- Missing or overdue calibration – Critical sensors used in validation not calibrated or outside tolerance, undermining data reliability.
- Weak or generic SOPs – SOPs that do not reflect actual validated settings, line clearance requirements, or intervention controls, causing gaps between validation and routine practice.
- Underestimation of CIP/SIP validation – Assuming that vendor‑recommended cycles are sufficient without site‑specific studies (e.g., coverage, TOC, riboflavin, bio‑indicator), particularly on complex manifolds.
- Poor risk assessment – Superficial FMEA or QRM exercises that fail to identify critical parameters such as hold times, mixing, line priming and product changeover.
Such deficiencies have been cited in enforcement actions where regulators concluded that firms had not adequately validated their filling processes, sometimes leading to warning letters, product recalls and import alerts.
Risk‑Based Validation Approach
Modern guidance strongly encourages a risk‑based, science‑based approach to qualification and validation.
QRM and FMEA
Tools such as Failure Modes and Effects Analysis (FMEA) and risk ranking and filtering can be used to identify which machine functions and parameters are truly critical (e.g., fill volume, container closure integrity, sterilization conditions, EM). Critical parameters receive more intense testing (e.g., worst‑case challenges, higher sampling) and tighter ongoing control, while lower‑risk aspects can be qualified with proportionate effort.
A worst‑case approach is typically applied to:
- Highest and lowest fill volumes.
- Most viscous and most foaming products.
- Smallest and largest container sizes.
- Minimum and maximum qualified line speeds.
Example Simplified Risk Matrix
| Severity (S) | Occurrence (O) | Detectability (D) | Risk Priority Number (RPN = S × O × D) | Risk band |
|---|---|---|---|---|
| 1–3: low impact (minor rework) | 1–3: rare | 1–3: easily detected | RPN ≤ 27 | Low |
| 4–7: moderate (batch rejection possible) | 4–7: occasional | 4–7: moderate detectability | 28–343 | Medium |
| 8–10: high (patient safety/sterility risk) | 8–10: frequent | 8–10: hard to detect | ≥ 344 | High |
In practice, parameters like fill volume accuracy, sterilizing filter integrity, Grade A EM performance, and SIP conditions will score high on severity and often on detectability, pushing them into high‑risk space and justifying intensive validation focus.
Validation Checklist for Liquid Filling Machines
The following validation checklist for filling machines can be used as a high‑level master list for project planning and internal audits; details must be tailored per site and product.
Master Checklist Table (Extract)
Future Trends in Filling Machine Validation
Regulators and industry are moving towards continuous verification, data‑driven decisions and advanced automation in line with Pharma 4.0 concepts.
- Digital validation and SCADA integration – Modern filling lines increasingly integrate with SCADA and Manufacturing Execution Systems (MES), enabling centralized data logging, electronic batch records and automated trend analysis.
- Real‑time monitoring and analytics – Networked sensors and continuous data logging allow for real‑time alarms, predictive analytics and early detection of drift in fill accuracy or EM performance.
- AI‑based monitoring and predictive maintenance – Machine learning models can be trained on historical data to predict failures (e.g., pump wear, nozzle clogging) and optimize preventive maintenance intervals, reducing unplanned downtime.
- Pharma 4.0 and continuous improvement – Annex 1 and FDA guidance both emphasize lifecycle approaches, where validation is not a one‑time event but an ongoing verification supported by digital tools and periodic CCS and QRM reviews.
FAQ Section
-
What are the critical validation parameters for liquid filling machines?
Key liquid filling machine validation parameters include fill volume/weight accuracy, repeatability, line speed capability, nozzle performance, CIP/SIP effectiveness, filter integrity (for sterile lines), environmental conditions, alarm/interlock functionality, sensor calibration, and reject system performance.
-
What is the difference between equipment qualification and process validation?
Equipment qualification (DQ, IQ, OQ, PQ) focuses on proving that the machine and its utilities operate as designed, while process validation demonstrates that the overall process, including filling, consistently produces products meeting predefined quality attributes in routine use.
-
What is the difference between OQ and PQ?
OQ challenges the equipment over defined operating ranges under controlled test conditions, focusing on functionality and parameter capability, whereas PQ uses consecutive commercial batches under routine conditions to prove long‑term reproducibility and robustness.
-
How many batches are required for PQ of a liquid filling line?
Many guidelines and industry practices support validating at least three consecutive commercial‑scale batches per product or product family, but the exact number should be justified based on risk, historical data and regulatory expectations.
-
How often should revalidation of liquid filling machines be performed?
Revalidation is typically triggered by significant changes (product, volume, speed, software, utilities), major maintenance, repeated deviations, or at predefined periods in the VMP; a purely fixed time interval without risk assessment is discouraged.
-
What is acceptable fill weight or volume variation?
Acceptable variation must be based on product registration and pharmacopeial requirements, but many critical small‑volume liquid fills target tight tolerances around ±1–2% to ensure dose accuracy and regulatory compliance.
-
What is a challenge test in filling machine validation?
Challenge tests intentionally stress the system—e.g., highest speed, most viscous product, alarm and interlock challenges, reject challenges—to prove that equipment and controls remain effective under worst‑case conditions.
-
How is line speed verified during validation?
Line speed is challenged at minimum, nominal and maximum qualified setpoints while monitoring fill accuracy, reject performance, stoppages and EM (for sterile lines), ensuring quality is maintained at all speeds.
-
What is CIP/SIP validation for liquid filling machines?
CIP/SIP validation shows that automated cleaning and sterilization cycles reliably remove product and contaminants and achieve targeted microbial inactivation using methods such as TOC/swab tests, riboflavin coverage and temperature mapping.
-
How does container closure integrity (CCI) relate to filling line validation?
For sterile injectable lines, CCI testing complements filling validation by proving that vials, ampoules or prefilled syringes remain sealed and sterile throughout shelf life, as emphasized by Annex 1 and aseptic processing guidance.
-
What is a traceability matrix in validation?
A traceability matrix (RTM) links URS requirements to specific DQ, FAT/SAT, IQ, OQ and PQ tests, ensuring no critical requirement is left unverified.
-
How are data integrity and 21 CFR Part 11 addressed in filling machine validation?
Computerized components (PLC, HMI, SCADA, data historian) must be validated to demonstrate secure user management, audit trails, time stamping, data retention and backup, fulfilling Part 11 and Annex 11 expectations.
-
What is the role of risk assessment in liquid filling machine qualification?
Risk assessment (e.g., FMEA) identifies critical parameters and failure modes so that validation efforts, sampling plans and monitoring focus on areas with highest patient and product risk.
-
How are injectable filling line validation and syrup filling machine validation different?
Injectable filling line validation focuses heavily on sterility assurance (EM, media fills, filter integrity, CCS), whereas syrup filling machine validation emphasizes fill accuracy, viscosity handling, cleaning validation and line clearance in a non‑sterile environment, while still complying with cGMP.
-
What is a hold time study in the context of liquid filling?
Hold time studies establish acceptable time limits for bulk solution holds (e.g., in tanks, manifolds) and for cleaned equipment storage, ensuring that product quality and bioburden remain within limits.
Struggling with Annex 1 PUPSIT integration? Contact our senior pharmaceutical validation consultants today for a comprehensive site-wide gap analysis.
References
- USFDA Guidance: Sterile Drug Products Produced by Aseptic Processing — Current Good Manufacturing Practice.
- EU GMP Annex 1: Manufacture of Sterile Medicinal Products (2022/2023 revision).
- WHO Technical Report Series 1019, Annex 3: Good Manufacturing Practices: Guidelines on Validation.
- WHO TRS 1044 (sterile GMP) and associated annexes on facilities and utilities.
- FDA/ORA CPG on process validation requirements for drug products.
